Py3plex GUI

A production-ready web-based GUI for py3plex multilayer network analysis, running locally via Docker Compose.

Visual Overview

The Py3plex GUI provides an intuitive web interface for multilayer network analysis. Below are screenshots of the main interface pages:

Figure 1: Load Data page for uploading network files in various formats

Quick Start

# Navigate to the gui directory
cd gui

# Copy environment configuration
cp .env.example .env

# Start all services (builds automatically)
make up

# Open in browser
#  Application: http://localhost:8080
# Data Job Monitor (Flower): http://localhost:5555

First time? The build takes ~3-5 minutes. Subsequent starts are instant.

That’s it! The application will be running with:

React + TypeScript frontend with hot reload
FastAPI backend with py3plex integration
Celery workers for async jobs
Redis broker
Nginx reverse proxy

Prerequisites

Docker (>= 20.10)
Docker Compose (>= 2.0)
4GB RAM minimum
Ports available: 8080 (GUI), 5555 (Flower), 8000 (API), 6379 (Redis)

Architecture

┌─────────────────────────────────────────────────────────────┐
│                     Nginx (Port 8080)                        │
│  Reverse Proxy + Static Serving                             │
└───────┬────────────────────────┬────────────────────────────┘
        │                        │
        ▼                        ▼
┌──────────────┐         ┌──────────────────────┐
│   Frontend   │         │      FastAPI         │
│ React + Vite │         │  (Port 8000)         │
│   (Dev HMR)  │         │  py3plex wrapper     │
└──────────────┘         └──────────┬───────────┘
                                    │
                    ┌───────────────┴────────────────┐
                    ▼                                ▼
            ┌──────────────┐                ┌──────────────┐
            │    Redis     │                │    Celery    │
            │  (Port 6379) │◄──────────────│    Worker    │
            │    Broker    │                │  + Flower    │
            └──────────────┘                └──────────────┘
                    │
                    ▼
            ┌──────────────────────────────────┐
            │  Shared Volume: /data            │
            │  - uploads/                      │
            │  - artifacts/                    │
            │  - workspaces/                   │
            └──────────────────────────────────┘

Key Components:

Frontend: React 18 + Vite + TypeScript + Tailwind CSS
API: FastAPI (Python 3.12) with py3plex integration
Worker: Celery for long-running analysis jobs
Broker: Redis for job queue
Proxy: Nginx for unified access
Monitoring: Flower dashboard for job inspection

Features

Data Loading

Upload network files (.edgelist, .txt, .gml, .gpickle)
Automatic format detection
Multilayer network support
Real-time file preview

Visualization

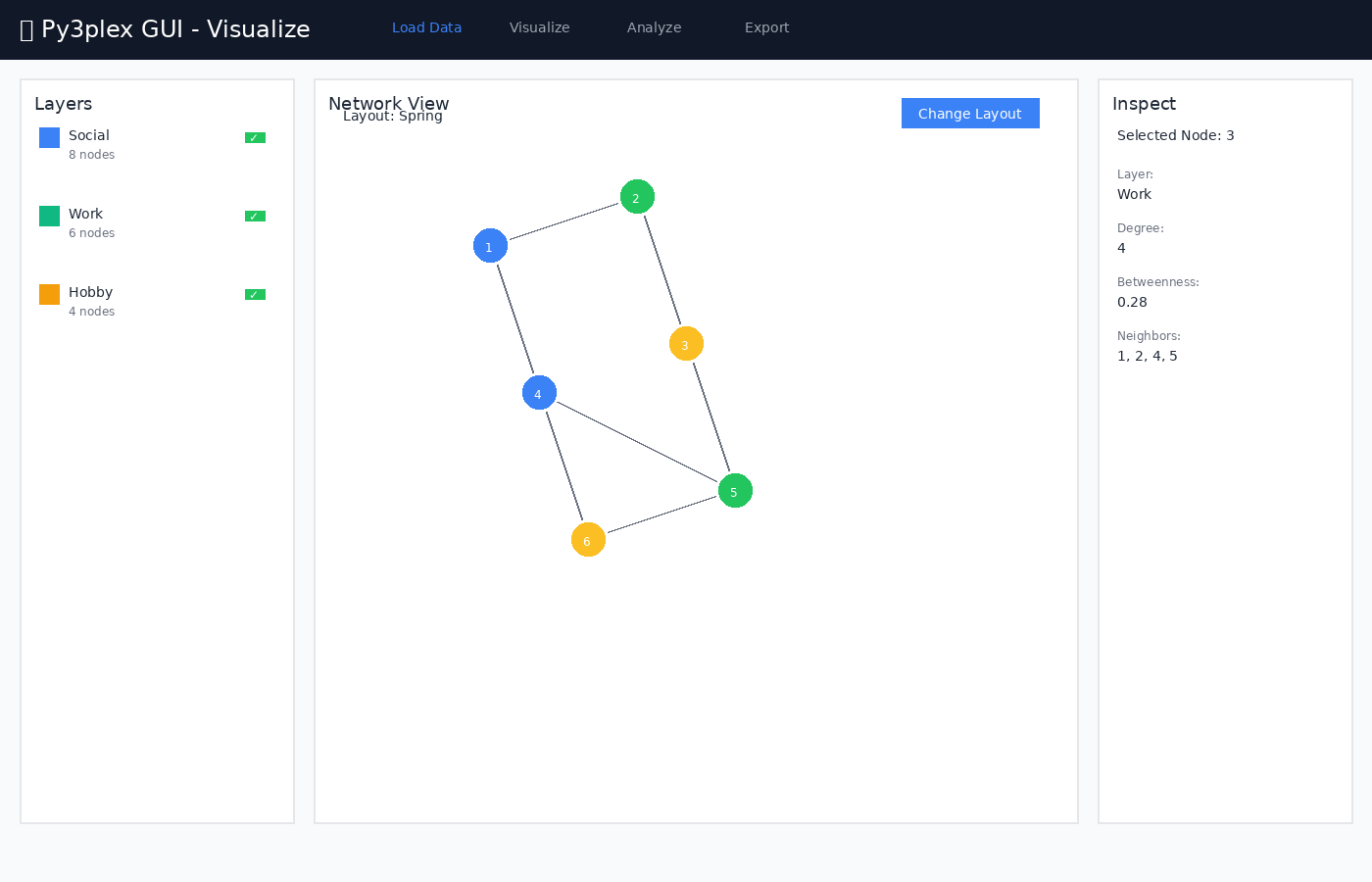

Figure 2: Network visualization with layer controls and node inspection panel

Features:

Layer-centric view
Interactive node/edge inspection
Configurable layouts
Position caching

Analysis (Async via Celery)

Figure 3: Analysis page with job controls and real-time progress tracking

Available Analysis Tools:

Layouts: Spring, Kamada-Kawai, Circular, Random
Centrality: Degree, Betweenness, Closeness, Eigenvector, PageRank
Community Detection: Louvain, Label Propagation, Greedy Modularity
Real-time progress tracking
Result caching

Export

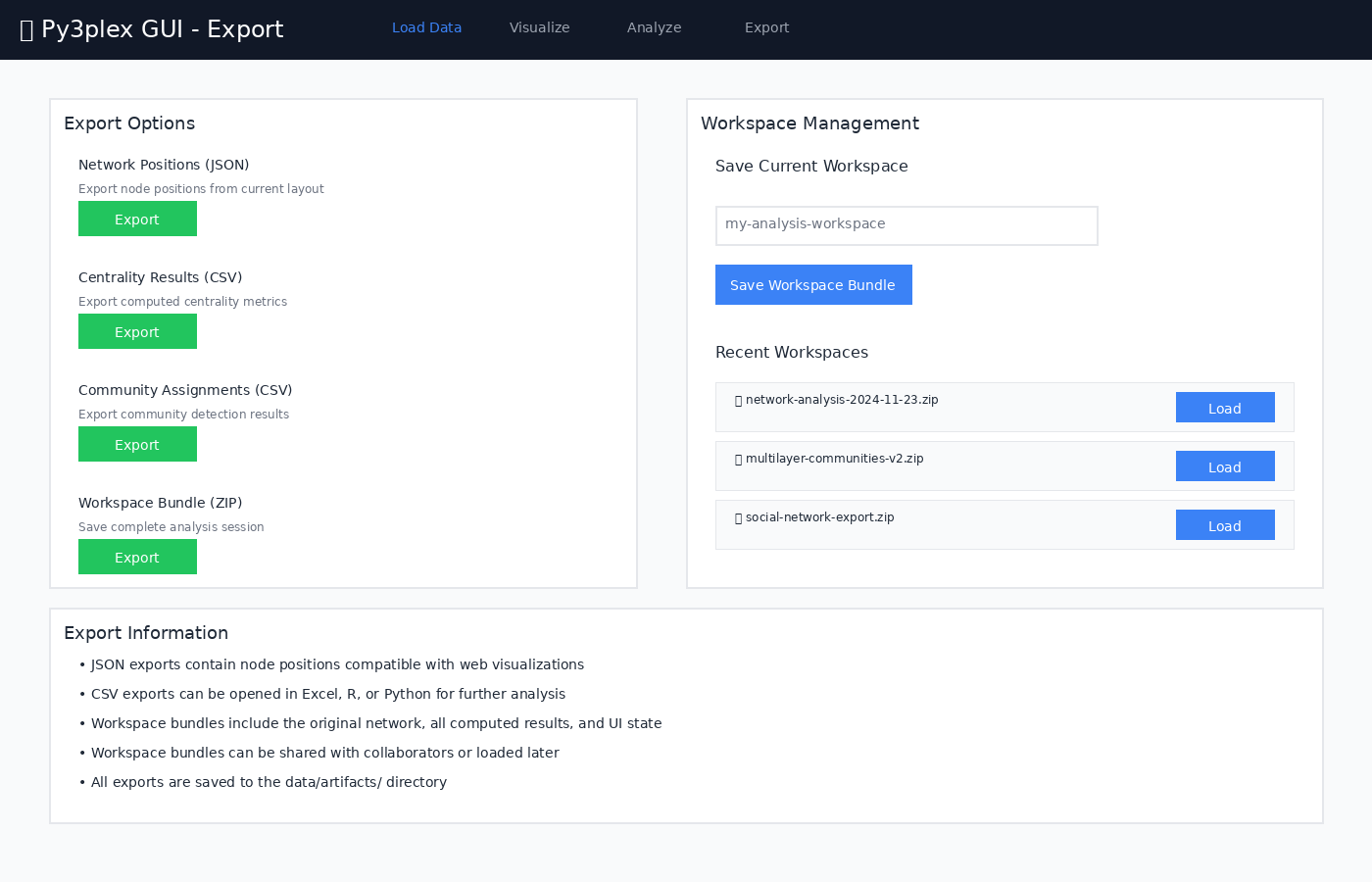

Figure 4: Export page for saving analysis results and workspace bundles

Export Options:

CSV summaries (centrality, communities)
JSON position data
PNG snapshots (planned)
Workspace bundles (data + state + results)

Workspace Bundles

Save and restore complete analysis sessions:

# Bundle includes:
# - Original network file
# - Computed layouts
# - Centrality results
# - Community assignments
# - UI view state

Job Monitoring

The GUI includes Flower dashboard for real-time monitoring of background jobs:

Figure 5: Flower dashboard showing task history and worker status

Monitoring Features:

Track task execution in real-time
View worker status and performance
Inspect task history and results
Monitor task queue and completion rates
Access at http://localhost:5555 when running

Development Guide

Project Structure

gui/
├── docker-compose.yml          # Main orchestration
├── compose.gpu.yml             # GPU override (optional)
├── Makefile                    # Convenience commands
├── .env.example                # Configuration template
├── nginx/
│   └── nginx.conf              # Reverse proxy config
├── api/
│   ├── Dockerfile.api          # API container
│   ├── pyproject.toml          # Python dependencies
│   └── app/
│       ├── main.py             # FastAPI app
│       ├── schemas.py          # Pydantic models
│       ├── deps.py             # DI & config
│       ├── routes/             # API endpoints
│       ├── services/           # Business logic (py3plex wrappers)
│       ├── workers/            # Celery tasks
│       └── utils/              # Helpers
├── worker/
│   └── Dockerfile              # Worker container
├── frontend/
│   ├── Dockerfile.frontend     # Frontend container
│   ├── package.json            # Node dependencies
│   ├── vite.config.ts          # Vite config
│   └── src/
│       ├── App.tsx             # Root component
│       ├── lib/api.ts          # API client
│       ├── pages/              # Page components
│       └── components/         # Reusable components
└── data/                       # Shared volume (gitignored)
    ├── uploads/
    ├── artifacts/
    └── workspaces/

Makefile Commands

make setup          # Copy .env.example to .env
make up             # Start all services (build if needed)
make down           # Stop and remove containers + volumes
make restart        # Restart all services
make build          # Rebuild Docker images
make logs           # Tail logs from all services

# Development helpers
make bash-api       # Shell into API container
make bash-worker    # Shell into worker container
make bash-frontend  # Shell into frontend container

# Testing
make test-api       # Run API tests
make e2e            # Run end-to-end tests (WIP)

# Cleanup
make clean          # Remove containers, volumes, and data

Local Development Against py3plex

The py3plex repository root is bind-mounted read-only into containers at /workspace:

# In Dockerfile.api
ARG PY3PLEX_PATH=/workspace
RUN pip install -e ${PY3PLEX_PATH}

Benefits:

Changes to py3plex core reflect immediately (no rebuild)
Editable install for development
Isolated GUI code under gui/

Note: The mount is read-only to prevent accidental writes from containers.

Configuration

Environment Variables (.env)

# API
API_WORKERS=2              # Uvicorn workers
MAX_UPLOAD_MB=512          # Max file size

# Celery
CELERY_CONCURRENCY=2       # Worker threads
REDIS_URL=redis://redis:6379/0

# Frontend
VITE_API_URL=http://localhost:8080/api

GPU Support (Optional)

Enable NVIDIA GPU acceleration:

docker compose -f docker-compose.yml -f compose.gpu.yml up

Requirements:

NVIDIA Docker runtime installed
CUDA-compatible GPU

Data Formats

Accepted Input Formats

1. Edge List (.edgelist, .txt)

# Multilayer format: node1 node2 layer weight
1 2 social 1.0
1 3 work 1.0
2 3 hobby 0.5

# Simple format: node1 node2
A B
B C
C D

2. GML (.gml)

Graph Modeling Language
Preserves attributes and metadata

3. NetworkX Pickle (.gpickle)

Native NetworkX serialization
Fastest for large graphs

Example Dataset

Try the included toy network:

# From host
curl -F "file=@gui/toy_network.edgelist" http://localhost:8080/api/upload

# Or use the Web UI at http://localhost:8080

Testing

Continuous Integration

GUI tests run automatically on GitHub Actions for any changes to the gui/ directory:

# Workflow: .github/workflows/gui-tests.yml
- API unit tests (pytest)
- Integration tests (Docker Compose)
- Frontend build verification

Status:

Tests include:

Health endpoint validation
File upload with toy network
Layout job execution and completion
Centrality computation
Service health checks

API Tests

# Run inside API container
make bash-api
pytest ci/api-tests/ -v

# Or directly
docker compose exec api pytest ci/api-tests/ -v

Integration Tests

The CI workflow runs full integration tests:

# Upload and analyze a network
cd gui
curl -F "file=@toy_network.edgelist" http://localhost:8080/api/upload
# Run layout, centrality, and community detection jobs

Frontend Tests (WIP)

# Playwright smoke tests
make e2e

Manual Testing Workflow

Upload toy_network.edgelist via Web UI
Visualize the network (6 nodes, 14 edges, 3 layers)
Analyze:
- Run Spring Layout
- Compute Centrality (degree + betweenness)
- Detect Communities (Louvain)
Monitor jobs at http://localhost:5555 (Flower)
Export workspace bundle

Production Deployment

Static Build (Recommended)

For production, serve pre-built frontend assets:

# Modify Dockerfile.frontend to use multi-stage build
FROM node:20-alpine AS builder
WORKDIR /app
COPY frontend/ .
RUN npm install && npm run build

FROM nginx:alpine
COPY --from=builder /app/dist /usr/share/nginx/html
COPY nginx/nginx.conf /etc/nginx/nginx.conf

Update docker-compose.yml:

frontend:
  build:
    context: .
    dockerfile: Dockerfile.frontend.prod
  # Remove dev server volume mounts

Security Considerations

Set CORS allow_origins to specific domains (not *)
Add authentication/authorization middleware
Use HTTPS (add TLS termination in Nginx)
Validate file uploads strictly
Set resource limits per user/job
Enable Celery task rate limiting

Current Status: Development mode - suitable for local use only. Do not expose to public internet without proper security hardening.

Troubleshooting

Issue: Port already in use

# Find process using port 8080
lsof -ti:8080 | xargs kill -9

# Or change port in docker-compose.yml
ports:
  - "8081:80"  # Use 8081 instead

Issue: Permission denied on /data

# Fix volume permissions
sudo chown -R $(whoami):$(whoami) gui/data/

Issue: py3plex import error in containers

# Verify mount
docker compose exec api ls -la /workspace

# Reinstall if needed
docker compose exec api pip install -e /workspace

Issue: Frontend can’t reach API

Check Nginx proxy config:

docker compose exec nginx cat /etc/nginx/nginx.conf

# Test API directly
curl http://localhost:8000/api/health

API Documentation

Interactive docs available at:

Swagger UI: http://localhost:8080/api/docs
ReDoc: http://localhost:8080/api/redoc

Key Endpoints

POST   /api/upload                          # Upload network file
GET    /api/graphs/{id}/summary             # Graph statistics
POST   /api/graphs/{id}/layout              # Compute layout (async)
POST   /api/graphs/{id}/analysis/centrality # Compute centrality (async)
POST   /api/graphs/{id}/analysis/community  # Detect communities (async)
GET    /api/jobs/{id}                       # Poll job status
POST   /api/workspaces/save                 # Save workspace bundle

Example: Run Analysis

# 1. Upload
GRAPH_ID=$(curl -F "file=@toy_network.edgelist" \
  http://localhost:8080/api/upload | jq -r .graph_id)

# 2. Start layout job
JOB_ID=$(curl -X POST \
  -H "Content-Type: application/json" \
  -d '{"algorithm":"spring","seed":42,"dimensions":2}' \
  http://localhost:8080/api/graphs/$GRAPH_ID/layout | jq -r .job_id)

# 3. Poll job
curl http://localhost:8080/api/jobs/$JOB_ID

# 4. Get positions
curl http://localhost:8080/api/graphs/$GRAPH_ID/positions

Contributing

This GUI is part of the py3plex project.

Guidelines:

Keep all GUI code under gui/
Do not modify py3plex core
Follow existing code style (Black, Ruff for Python; ESLint for TypeScript)
Add tests for new features
Update documentation with new features

License

This GUI follows the py3plex repository license:

GUI code (under gui/): BSD-3-Clause (same as py3plex)
Dependencies: See individual package licenses

Acknowledgments

Built with:

py3plex - Multilayer network analysis
FastAPI - Modern Python web framework
Celery - Distributed task queue
React - UI library
Vite - Frontend build tool
Tailwind CSS - Utility-first CSS

Support

Issues: https://github.com/SkBlaz/py3plex/issues
Docs: https://skblaz.github.io/py3plex/
py3plex Paper: Applied Network Science 2019
