Visualization Guide

This guide covers multilayer network visualization in Py3plex, including preset modes, customization options, and best practices for different network scales.

Quick Start

Basic Multilayer Visualization

from py3plex.core import multinet
from py3plex.visualization.multilayer import draw_multilayer_default
import matplotlib.pyplot as plt

# Load network
network = multinet.multi_layer_network()
network.load_network("network.csv", input_type="multiedgelist")

# Visualize with defaults
draw_multilayer_default(
    network.get_layers(),
    display=True,
    labels=True
)

Preset Visualization Modes

Py3plex provides three preset modes optimized for different network scales and use cases.

Minimal Mode (Large Networks >1000 nodes)

Optimized for networks with many nodes where detail isn’t critical.

from py3plex.visualization.multilayer import draw_multilayer_default

# Minimal preset for large networks
draw_multilayer_default(
    network.get_layers(),
    # Node settings
    node_size=5,              # Small nodes
    labels=False,             # No node labels (too cluttered)
    node_labels=False,        # No node IDs

    # Edge settings
    edge_size=0.5,            # Thin edges
    alphalevel=0.3,           # Transparent edges (reduce clutter)

    # Layout
    background_shape="circle",  # Circular layout

    # Display
    display=True,
    remove_isolated_nodes=True  # Clean up isolated nodes
)

Use cases: - Large social networks (>1000 nodes) - Overview visualizations - Pattern detection at macro level - Network topology understanding

Advantages: - Fast rendering - Reduced visual clutter - Shows overall structure - Works with many nodes

Balanced Mode (Medium Networks 100-1000 nodes)

Default settings that work well for most networks. Good balance between detail and clarity.

# Balanced preset (this is the default)
draw_multilayer_default(
    network.get_layers(),
    # Node settings
    node_size=10,             # Medium nodes
    labels=True,              # Show layer labels
    node_labels=False,        # Node IDs hidden by default

    # Edge settings
    edge_size=1.0,            # Normal edge width
    alphalevel=0.13,          # Semi-transparent edges

    # Layout
    background_shape="circle",  # Circular layout
    networks_color="rainbow",   # Auto-assign colors

    # Display
    display=True
)

Use cases: - Most research networks - Exploratory data analysis - Publication figures (moderate detail) - Interactive exploration

Advantages: - Good readability - Reasonable performance - Balanced aesthetics - Suitable for most publications

Dense Mode (Small Networks <100 nodes)

Maximum detail for small networks where every node and edge matters.

# Dense preset for small, detailed networks
draw_multilayer_default(
    network.get_layers(),
    # Node settings
    node_size=20,             # Large nodes
    labels=True,              # Show all labels
    node_labels=True,         # Show node IDs
    node_font_size=10,        # Readable font
    scale_by_size=True,       # Scale by degree

    # Edge settings
    edge_size=2.0,            # Thick edges
    alphalevel=0.8,           # Mostly opaque
    arrowsize=0.5,            # Visible arrows (if directed)

    # Layout
    background_shape="rectangle",  # Rectangular layout
    networks_color="rainbow",

    # Display
    display=True
)

Use cases: - Small case studies - Detailed analysis - Node-level examination - High-quality publication figures

Advantages: - Maximum detail - Clear node identification - Edge weights visible - Professional appearance

Layout Options

Py3plex supports multiple layout algorithms for different network structures.

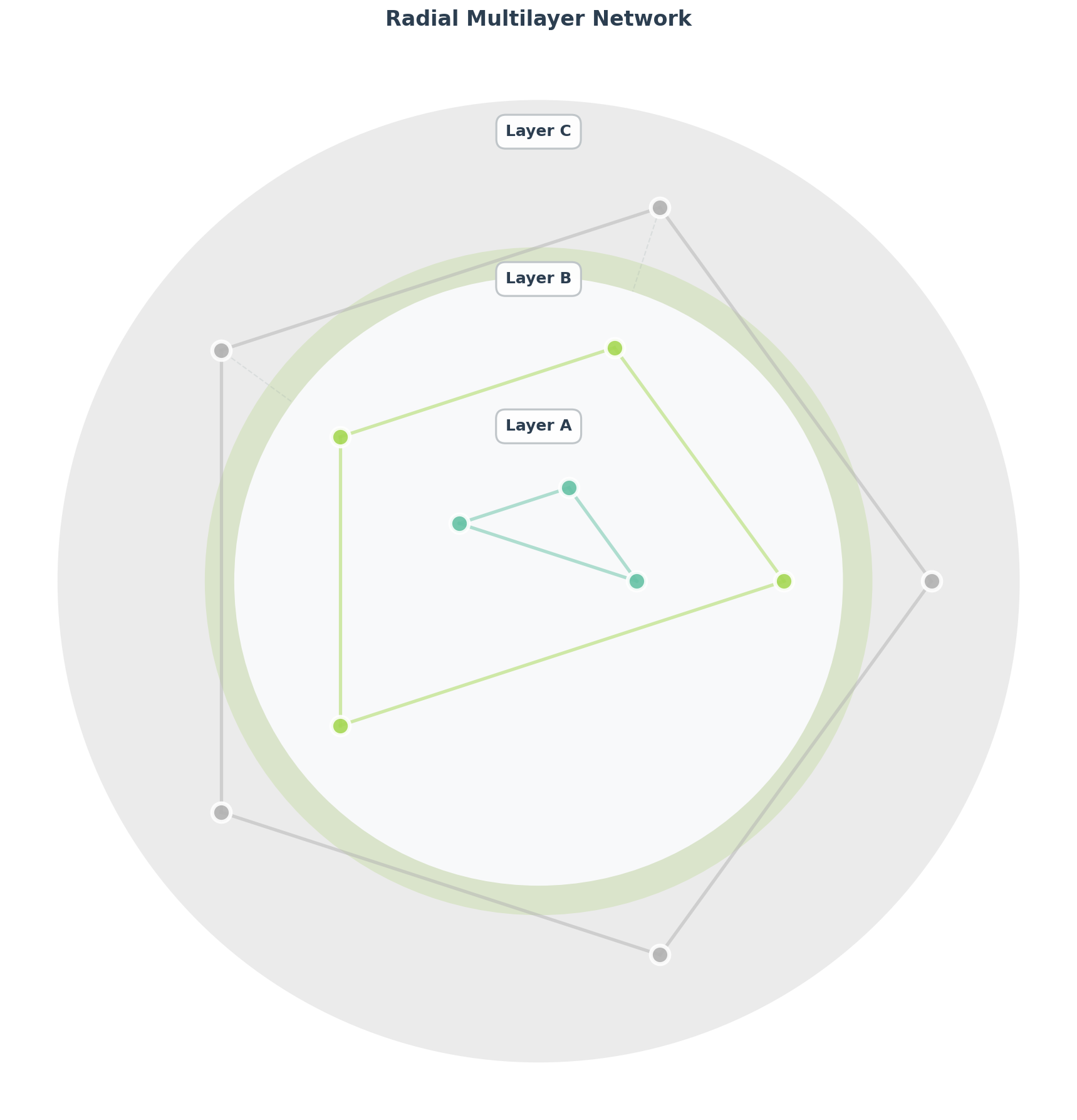

Circular Layout (Default)

Arranges layers in a circle. Good for showing inter-layer connections.

draw_multilayer_default(
    network.get_layers(),
    background_shape="circle",
    rectanglex=1.0,  # Circle radius x
    rectangley=1.0   # Circle radius y
)

Best for: - 2-10 layers - Symmetric layer interactions - Publication figures

Rectangular Layout

Arranges layers in a grid. Good for many layers or hierarchical structures.

draw_multilayer_default(
    network.get_layers(),
    background_shape="rectangle",
    rectanglex=2.0,  # Width of layout
    rectangley=1.0   # Height of layout
)

Best for: - Many layers (>10) - Hierarchical networks - Time-series data - Wide figures

Auto-Scaling Features

Py3plex automatically adjusts visualization parameters based on network size.

Automatic Node Sizing

Scale node sizes by degree (number of connections):

draw_multilayer_default(
    network.get_layers(),
    scale_by_size=True,    # Enable auto-scaling
    node_size=10           # Base size (scaled up/down by degree)
)

How it works:

• Nodes with more connections → larger size

• Isolated nodes → smaller size

• Hub nodes are easily identifiable

Automatic Color Assignment

Py3plex uses colorblind-safe palettes by default:

# Rainbow colors (automatic assignment)
draw_multilayer_default(
    network.get_layers(),
    networks_color="rainbow"  # Auto-assign distinct colors
)

# Custom palette
draw_multilayer_default(
    network.get_layers(),
    networks_color=["#FF6B6B", "#4ECDC4", "#45B7D1", "#FFA07A"]
)

Available palettes (from py3plex.config):

• colorblind_safe: 8 colors safe for colorblind viewers

• wong: 7-color palette (scientifically validated)

• tol_bright: 7 bright colors

• rainbow: Automatic generation

Automatic Layout Adjustment

Layout parameters auto-adjust to network size:

# For small networks, layout is compact
small_network = multinet.multi_layer_network()
# ... load 50-node network ...
draw_multilayer_default(small_network.get_layers())  # Compact layout

# For large networks, layout expands
large_network = multinet.multi_layer_network()
# ... load 1000-node network ...
draw_multilayer_default(large_network.get_layers())  # Expanded layout

Customization Options

Complete Parameter Reference

draw_multilayer_default(
    network_list,             # List of layer subgraphs

    # Display control
    display=True,             # Show plot immediately
    axis=None,                # Matplotlib axis (None = create new)

    # Node appearance
    node_size=10,             # Base node size
    scale_by_size=False,      # Scale by degree?
    node_labels=False,        # Show node IDs?
    node_font_size=5,         # Font size for node labels

    # Edge appearance
    edge_size=1.0,            # Edge thickness
    alphalevel=0.13,          # Edge transparency (0=invisible, 1=opaque)
    arrowsize=0.5,            # Arrow size (for directed graphs)

    # Layout
    background_shape="circle",  # "circle" or "rectangle"
    rectanglex=1.0,           # Layout width/radius
    rectangley=1.0,           # Layout height/radius

    # Colors
    networks_color="rainbow", # "rainbow" or list of colors
    background_color="rainbow",  # Background color scheme

    # Labels
    labels=True,              # Show layer labels?
    label_position=1.0,       # Label distance from center

    # Cleanup
    remove_isolated_nodes=False,  # Remove disconnected nodes?

    # Debugging
    verbose=False             # Print debug info?
)

Layer-Specific Customization

Customize individual layers:

import matplotlib.pyplot as plt
from py3plex.visualization.multilayer import draw_multilayer_default

# Get layers
layers = network.get_layers()

# Modify specific layer (e.g., highlight layer 0)
for node in layers[0].nodes():
    layers[0].nodes[node]['color'] = 'red'
    layers[0].nodes[node]['size'] = 20

# Visualize with custom layer
draw_multilayer_default(layers, display=True)

Color-Coding by Community

Color nodes by community membership:

from py3plex.algorithms.community_detection import community_louvain
import matplotlib.pyplot as plt
import matplotlib.cm as cm

# Detect communities
communities = community_louvain.best_partition(network.core_network)

# Assign colors
num_communities = len(set(communities.values()))
colors = cm.rainbow([i/num_communities for i in range(num_communities)])

# Apply to network
for node, comm_id in communities.items():
    network.core_network.nodes[node]['color'] = colors[comm_id]

# Visualize
draw_multilayer_default(network.get_layers(), display=True)

Exporting Visualizations

Save to File

import matplotlib.pyplot as plt

# Create figure
fig, ax = plt.subplots(1, 1, figsize=(12, 8))

# Draw network
draw_multilayer_default(
    network.get_layers(),
    display=False,
    axis=ax
)

# Customize and save
plt.title("Multilayer Network Visualization")
plt.savefig('network.png', dpi=300, bbox_inches='tight')
plt.savefig('network.pdf', bbox_inches='tight')  # Vector format
print("Visualization saved to network.png and network.pdf")

High-Quality Publications

import matplotlib.pyplot as plt

# Use publication settings
plt.rcParams['font.family'] = 'serif'
plt.rcParams['font.size'] = 10
plt.rcParams['figure.dpi'] = 300

# Large figure for detail
fig, ax = plt.subplots(1, 1, figsize=(10, 8))

# Dense mode for publications
draw_multilayer_default(
    network.get_layers(),
    display=False,
    axis=ax,
    node_size=15,
    labels=True,
    alphalevel=0.5,
    background_shape="circle"
)

plt.title("Figure 1: Multilayer Network Structure", fontsize=12)
plt.savefig('publication_figure.pdf', bbox_inches='tight')
plt.savefig('publication_figure.png', dpi=300, bbox_inches='tight')

Interactive Visualizations

Using Plotly (Optional)

Py3plex provides interactive visualization capabilities through Plotly, allowing you to explore networks dynamically in your web browser.

Installation:

# Install plotly separately
pip install plotly

# Or install py3plex with visualization extras
pip install git+https://github.com/SkBlaz/py3plex.git#egg=py3plex[viz]

Basic Interactive Hairball Plot

The interactive_hairball_plot function creates an interactive 2D network visualization:

import networkx as nx
from py3plex.core import random_generators
from py3plex.visualization.multilayer import interactive_hairball_plot

# Generate a network
multilayer_net = random_generators.random_multilayer_ER(50, 3, 0.15, directed=False)

# Convert to NetworkX graph
network_colors, G = multilayer_net.get_layers(style="hairball")

# Compute layout
pos = nx.spring_layout(G, iterations=50, seed=42)

# Compute node sizes based on degree
degrees = dict(G.degree())
max_degree = max(degrees.values())
node_sizes = [10 + 40 * (degrees[node] / max_degree) for node in G.nodes()]

# Create color mapping
color_mapping = {node: node_sizes[i] for i, node in enumerate(G.nodes())}

# Generate interactive visualization
fig = interactive_hairball_plot(
    G,
    nsizes=node_sizes,
    final_color_mapping=color_mapping,
    pos=pos,
    colorscale="Viridis"  # Options: Viridis, Rainbow, Blues, Reds, etc.
)

# Save to HTML file
if fig:
    fig.write_html("network.html")
    print("Interactive visualization saved to network.html")

Interactive Features:

• Hover: Move your mouse over nodes to see details

• Zoom: Use mouse wheel to zoom in/out

• Pan: Click and drag to move the view

• Select: Click nodes to highlight connections

Color Scales Available:

• Viridis: Perceptually uniform, colorblind-friendly

• Rainbow: Full color spectrum

• Blues, Reds, Greens: Single-hue gradients

• RdBu, YlOrRd: Diverging color schemes

• Jet, Hot, Electric: High-contrast schemes

Advanced Interactive Multilayer Example

For more complex multilayer networks with custom styling:

from py3plex.core import multinet
from py3plex.visualization.multilayer import interactive_hairball_plot
import networkx as nx

# Create multilayer network
network = multinet.multi_layer_network()

# Add nodes to different layers
layers = ['social', 'professional', 'family']
nodes_per_layer = {
    'social': ['Alice', 'Bob', 'Charlie', 'David', 'Eve'],
    'professional': ['Alice', 'Bob', 'Frank', 'Grace', 'Henry'],
    'family': ['Alice', 'Charlie', 'David', 'Ivan', 'Jane']
}

for layer in layers:
    for node in nodes_per_layer[layer]:
        network.add_nodes([{'source': node, 'type': layer}])

# Add edges (example for one layer)
network.add_edges([
    {'source': 'Alice', 'target': 'Bob', 'source_type': 'social', 'target_type': 'social'},
    {'source': 'Bob', 'target': 'Charlie', 'source_type': 'social', 'target_type': 'social'},
])

# Convert to aggregate graph
G = nx.Graph()
for node in set(n for layer_nodes in nodes_per_layer.values() for n in layer_nodes):
    G.add_node(node)

# Compute layout and visualize
pos = nx.spring_layout(G, seed=42)
degrees = dict(G.degree())
node_sizes = [20 + 80 * (degrees[node] / max(degrees.values())) for node in G.nodes()]

# Assign colors by layer membership
layer_colors = {'social': 0, 'professional': 50, 'family': 100}
color_mapping = {}
for node in G.nodes():
    # Find primary layer for this node
    for layer, nodes in nodes_per_layer.items():
        if node in nodes:
            color_mapping[node] = layer_colors[layer]
            break

# Create interactive visualization
fig = interactive_hairball_plot(G, node_sizes, color_mapping, pos, colorscale="Viridis")

# Customize the figure
if fig:
    fig.update_layout(
        title="Interactive Multilayer Network",
        hovermode='closest',
        plot_bgcolor='rgba(240, 240, 240, 0.9)'
    )
    fig.write_html("multilayer_network.html")

Complete Working Examples:

See the following example scripts in the repository:

• examples/visualization/example_interactive_hairball.py - Basic interactive visualization

• examples/visualization/example_interactive_multilayer.py - Advanced multilayer interactive plot

These examples are standalone and can be run directly:

cd examples/visualization
python example_interactive_hairball.py
# Opens browser with interactive visualization

Jupyter Notebook Integration

Interactive visualizations work seamlessly in Jupyter notebooks:

# In Jupyter notebook
from py3plex.visualization.multilayer import interactive_hairball_plot

# ... prepare your graph, positions, etc. ...

fig = interactive_hairball_plot(G, node_sizes, color_mapping, pos)

# The figure will be displayed inline in the notebook
# No need to call fig.show() - it's called automatically

Notebook Tips:

1. The interactive plot appears directly in the notebook

2. All interactive features work in the notebook interface

3. Use fig.write_html() to save for sharing

4. Interactive plots work in JupyterLab, Jupyter Notebook, and VS Code notebooks

Saving Interactive Visualizations

Save your interactive visualizations for sharing or publishing:

# Create the figure
fig = interactive_hairball_plot(G, node_sizes, color_mapping, pos)

# Save as standalone HTML
fig.write_html("network.html")

# Save as HTML with custom configuration
fig.write_html(
    "network.html",
    config={
        'displayModeBar': True,  # Show toolbar
        'displaylogo': False,     # Hide Plotly logo
        'modeBarButtonsToRemove': ['pan2d', 'lasso2d']  # Hide specific tools
    }
)

# Save as static image (requires kaleido)
# pip install kaleido
fig.write_image("network.png", width=1200, height=800)
fig.write_image("network.pdf")  # Vector format

HTML File Features:

• Standalone - works without internet connection

• No dependencies needed in browser

• Full interactivity preserved

• Can be embedded in web pages

• Works on mobile devices

Embedding in Web Applications

Embed interactive visualizations in your web applications:

<!DOCTYPE html>
<html>
<head>
    <title>Network Visualization</title>
</head>
<body>
    <h1>My Network Analysis</h1>

    <!-- Embed the interactive plot -->
    <iframe src="network.html" width="100%" height="600px" frameborder="0"></iframe>

    <p>Description of your network...</p>
</body>
</html>

Or include the plot div directly:

# Generate only the div (not full HTML page)
fig_html = fig.to_html(
    include_plotlyjs='cdn',  # Use CDN for Plotly.js
    div_id='my-network-plot'
)

# Use fig_html in your web framework (Flask, Django, etc.)

Troubleshooting Interactive Visualizations

Issue: Plotly not available

# Solution: Install plotly
pip install plotly

Issue: Figure doesn’t show in Jupyter

# Solution: Call fig.show() explicitly
fig = interactive_hairball_plot(G, node_sizes, color_mapping, pos)
fig.show()

Issue: Slow performance with large networks

# Solution 1: Sample nodes for interactive view
import random
sample_nodes = random.sample(list(G.nodes()), min(500, G.number_of_nodes()))
G_sample = G.subgraph(sample_nodes)

# Solution 2: Use simpler layout
pos = nx.random_layout(G)  # Faster than spring_layout

# Solution 3: Reduce node sizes and simplify colors
node_sizes = [5] * G.number_of_nodes()  # Constant size
color_mapping = {node: 0 for node in G.nodes()}  # Single color

Issue: HTML file is too large

# Solution: Reduce data in the plot
# 1. Use fewer nodes (sample or filter)
# 2. Use constant node sizes instead of varying
# 3. Simplify color scheme
# 4. Remove edge traces if not needed

Performance Guidelines

Network Size Recommendations:

• < 100 nodes: All features work smoothly

• 100-500 nodes: Good performance, all features

• 500-1000 nodes: Usable, may have slight lag

• 1000-5000 nodes: Sample nodes or use simplified styling

• > 5000 nodes: Use static visualizations instead

Optimization Tips:

1. Use constant node sizes for large networks

2. Simplify color schemes (single color or discrete categories)

3. Use nx.random_layout() instead of nx.spring_layout() for speed

4. Sample nodes for interactive exploration

5. Consider static visualization for very large networks

Jupyter Notebook Integration

# Enable inline plotting
%matplotlib inline

# Or for interactive plots
%matplotlib notebook

# Visualize
from py3plex.visualization.multilayer import draw_multilayer_default
draw_multilayer_default(network.get_layers(), display=True)

Performance Tips

For Large Networks

1. Use minimal mode (small nodes, no labels)

2. Sample nodes if network is too large:

import random

# Sample 1000 random nodes
all_nodes = list(network.get_nodes())
sample_nodes = random.sample(all_nodes, min(1000, len(all_nodes)))

# Create subnetwork
subnetwork = network.get_subnetwork(sample_nodes)

# Visualize sample
draw_multilayer_default(subnetwork.get_layers(), display=True)

3. Remove isolated nodes:

draw_multilayer_default(
    network.get_layers(),
    remove_isolated_nodes=True  # Faster rendering
)

4. Use lower resolution for interactive exploration:

plt.figure(figsize=(8, 6), dpi=100)  # Lower DPI for speed

Troubleshooting

Visualization Not Showing

Issue: Plot doesn’t appear

Solutions:

# Jupyter notebook: Enable inline plots
%matplotlib inline

# Python script: Add plt.show()
draw_multilayer_default(network.get_layers(), display=False)
plt.show()

# Headless server: Save to file
import matplotlib
matplotlib.use('Agg')  # Must be before importing pyplot

Nodes Overlapping

Issue: Nodes overlap and are hard to distinguish

Solutions:

# 1. Use smaller node size
draw_multilayer_default(network.get_layers(), node_size=5)

# 2. Increase layout area
draw_multilayer_default(
    network.get_layers(),
    rectanglex=2.0,  # Wider layout
    rectangley=2.0   # Taller layout
)

# 3. Sample nodes
# (See "Performance Tips" above)

Labels Too Crowded

Issue: Layer labels overlap or are too dense

Solutions:

# 1. Disable labels for large networks
draw_multilayer_default(network.get_layers(), labels=False)

# 2. Adjust label position
draw_multilayer_default(
    network.get_layers(),
    labels=True,
    label_position=1.2  # Move labels outward
)

# 3. Use smaller font
draw_multilayer_default(
    network.get_layers(),
    node_font_size=3  # Smaller font
)

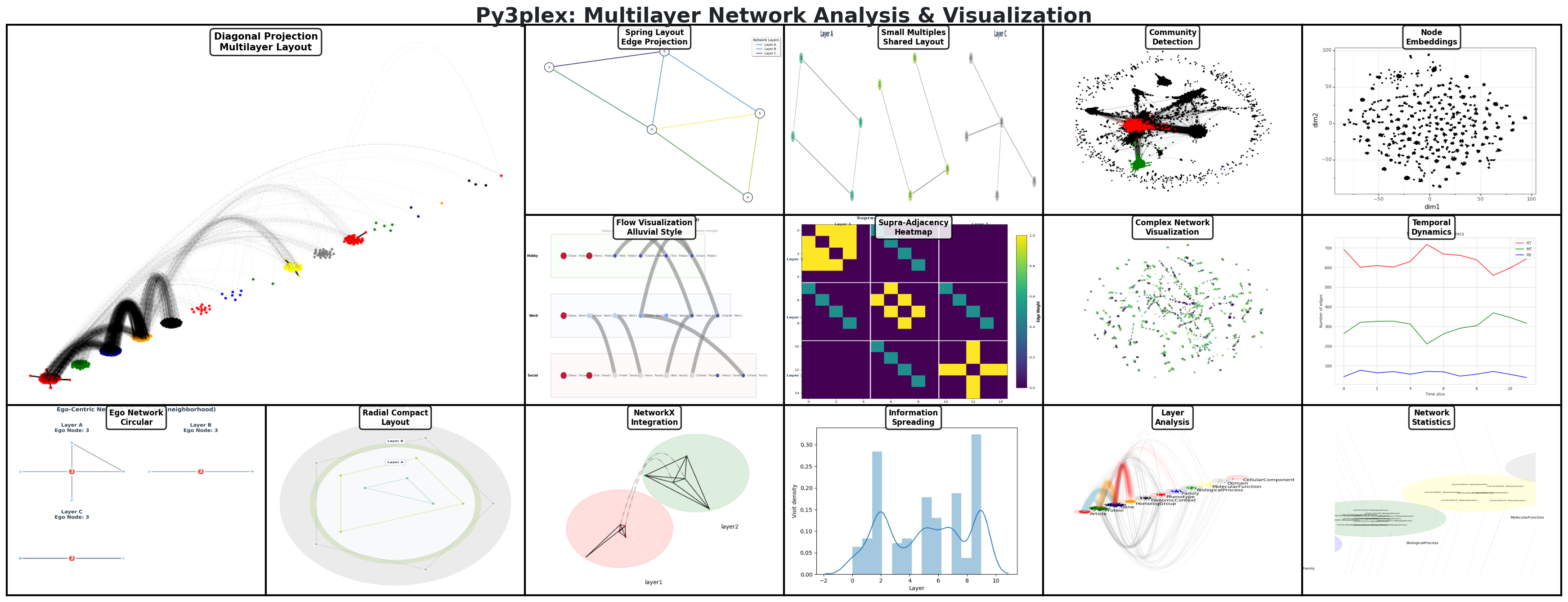

Advanced Visualization Modes

Py3plex provides multiple specialized visualization modes for multilayer networks, each optimized for different analysis goals. These modes can be accessed through the unified visualize_multilayer_network API or by calling individual plot functions.

Overview of Visualization Modes

The following visualization modes are available:

1. diagonal (default): Layer-centric diagonal layout with inter-layer edges

2. small_multiples: Side-by-side comparison of layers in a grid

3. edge_colored_projection: Aggregated view with color-coded edges by layer

4. supra_adjacency_heatmap: Matrix representation of the multilayer structure

5. radial_layers: Concentric circles with layers as rings

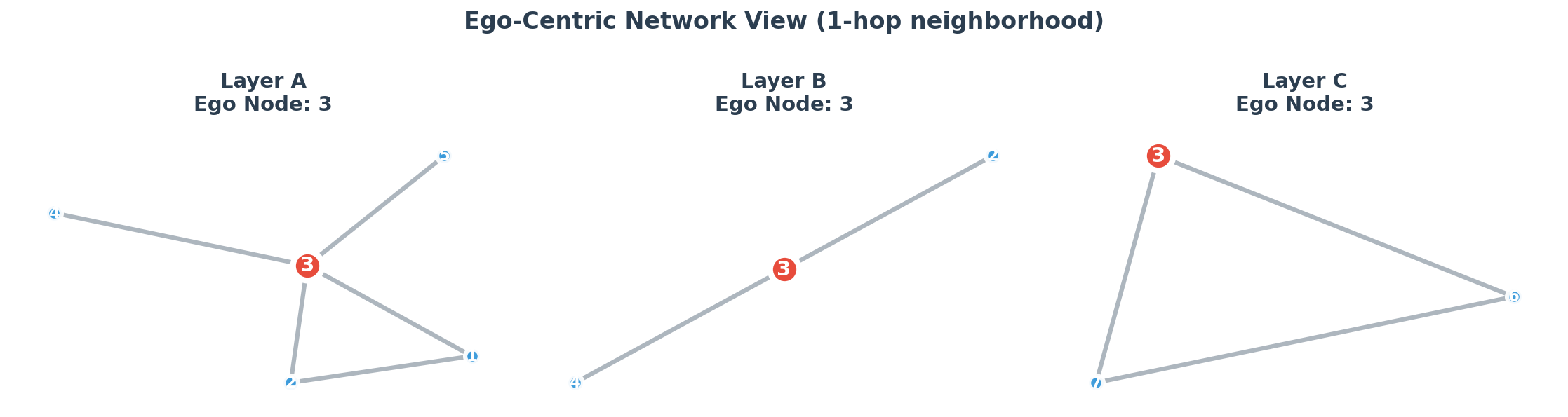

6. ego_multilayer: Focus on a single node’s neighborhood across layers

7. flow/alluvial: Layered flow visualization with horizontal bands

8. sankey: Sankey diagram showing inter-layer flow strength

Unified API

All visualization modes can be accessed through the visualize_multilayer_network function:

from py3plex.core import multinet
from py3plex.visualization.multilayer import visualize_multilayer_network

# Load network
network = multinet.multi_layer_network()
network.load_network("network.txt", input_type="multiedgelist")

# Use any visualization mode
fig = visualize_multilayer_network(
    network,
    visualization_type="small_multiples"  # or any other mode
)

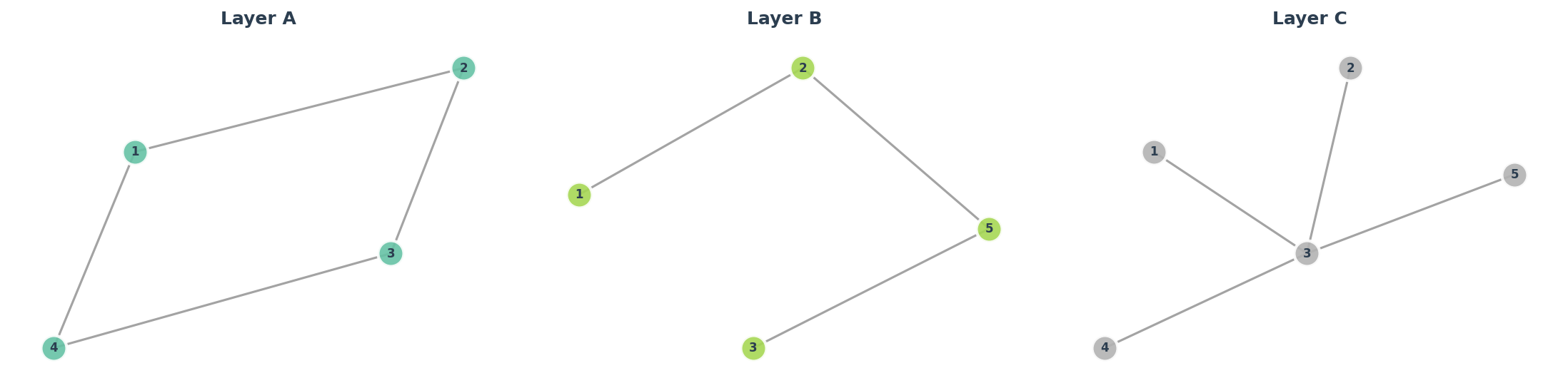

Small Multiples View

Displays each layer as a separate subplot in a grid layout, making it easy to compare layer structures side-by-side.

from py3plex.visualization.multilayer import visualize_multilayer_network

# Shared layout (nodes appear at same positions across layers)
fig = visualize_multilayer_network(
    network,
    visualization_type="small_multiples",
    shared_layout=True,       # Same node positions in all layers
    layout="spring",          # Layout algorithm
    node_size=300,
    max_cols=3,               # Maximum columns in grid
    show_layer_titles=True,
    with_labels=True
)

# Independent layouts (optimized per layer)
fig = visualize_multilayer_network(
    network,
    visualization_type="small_multiples",
    shared_layout=False,      # Different layouts per layer
    layout="circular"
)

Best for:

• Comparing layer structures

• Identifying layer-specific patterns

• Understanding node presence across layers

• Networks with 2-10 layers

Parameters:

• shared_layout: Use same node positions across layers

• layout: “spring”, “circular”, “random”, “kamada_kawai”

• max_cols: Maximum number of columns in grid

• show_layer_titles: Display layer names

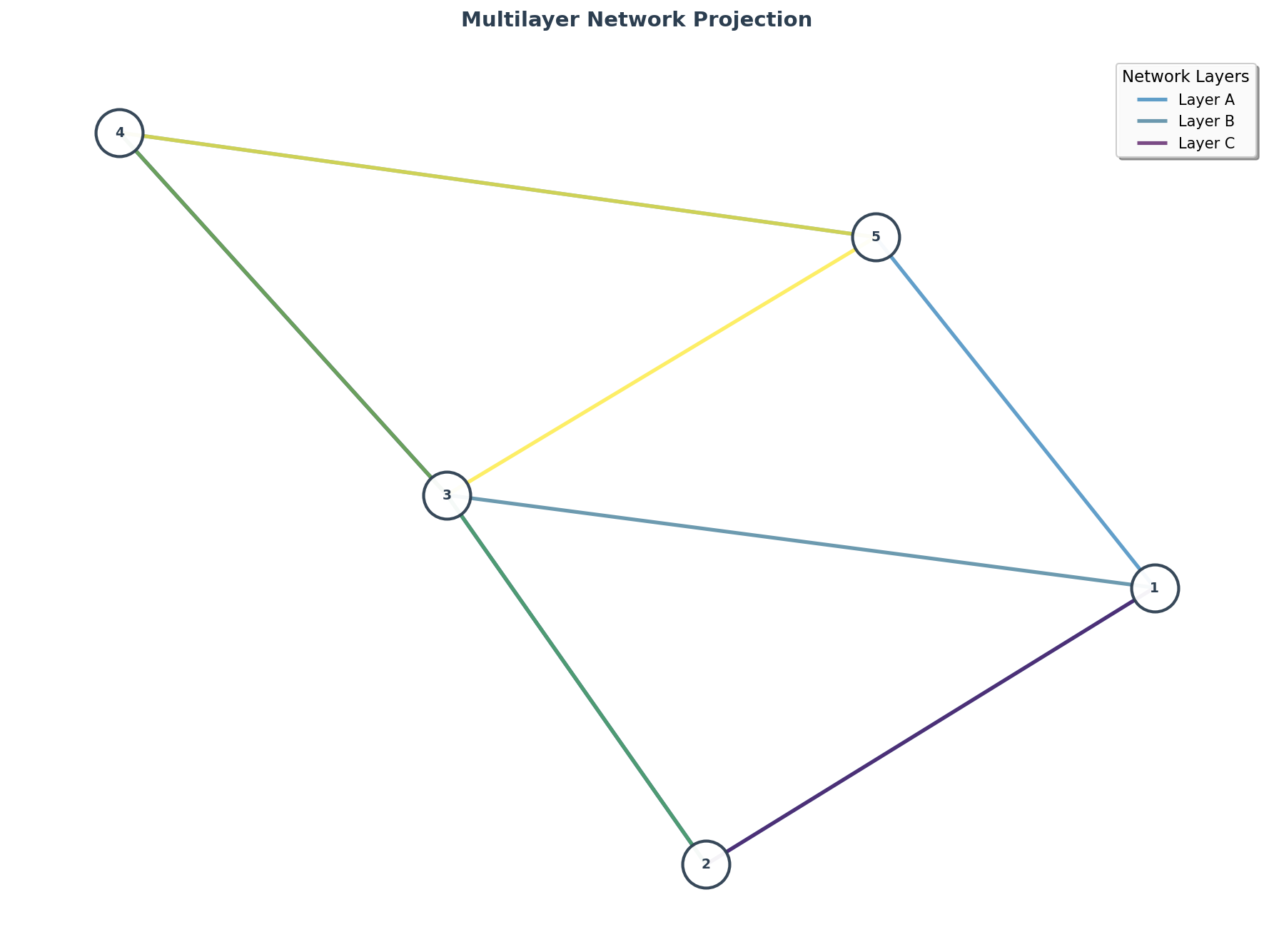

Edge-Colored Projection

Projects all layers onto a single 2D graph, using edge colors to indicate layer membership. Useful for seeing the overall structure while maintaining layer information.

from py3plex.visualization.multilayer import visualize_multilayer_network

# Basic projection
fig = visualize_multilayer_network(
    network,
    visualization_type="edge_colored_projection",
    layout="spring",
    node_size=500,
    edge_alpha=0.7,           # Edge transparency
    with_labels=True
)

# Custom layer colors
custom_colors = {
    'layer1': 'red',
    'layer2': 'blue',
    'layer3': 'green'
}

fig = visualize_multilayer_network(
    network,
    visualization_type="edge_colored_projection",
    layer_colors=custom_colors
)

Best for:

• Aggregate network structure

• Comparing edge distributions across layers

• Identifying layer-dominant connections

• Networks where edges don’t heavily overlap

Parameters:

• layout: Layout algorithm for the aggregated graph

• layer_colors: Dict mapping layer names to colors

• edge_alpha: Transparency level for edges (0-1)

• figsize: Figure dimensions

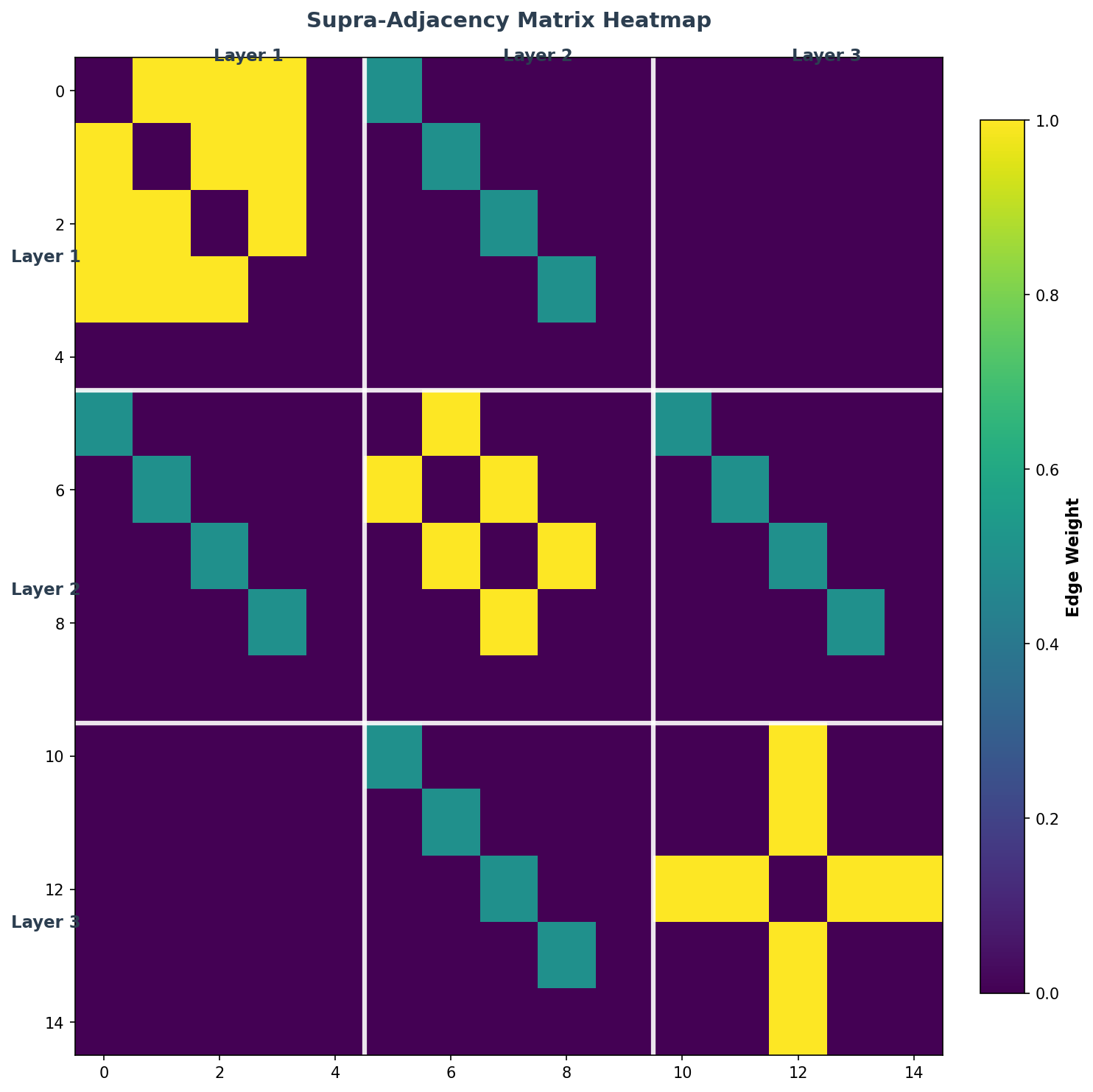

Supra-Adjacency Heatmap

Shows the multilayer network as a block matrix where each block represents the adjacency matrix of one layer. Can optionally include inter-layer connections.

from py3plex.visualization.multilayer import visualize_multilayer_network

# Intra-layer only (block-diagonal structure)
fig = visualize_multilayer_network(
    network,
    visualization_type="supra_adjacency_heatmap",
    include_inter_layer=False,
    cmap="Blues"
)

# With inter-layer coupling
fig = visualize_multilayer_network(
    network,
    visualization_type="supra_adjacency_heatmap",
    include_inter_layer=True,
    inter_layer_weight=0.5,   # Weight for inter-layer edges
    cmap="viridis"
)

Best for:

• Mathematical analysis of structure

• Identifying block patterns

• Understanding coupling between layers

• Spectral analysis preparation

Parameters:

• include_inter_layer: Show inter-layer connections

• inter_layer_weight: Default weight for inter-layer edges

• cmap: Matplotlib colormap name

• figsize: Figure dimensions

Interpretation:

• Diagonal blocks = intra-layer adjacency matrices

• Off-diagonal blocks = inter-layer connections

• White grid lines = layer boundaries

Radial/Concentric Layers

Arranges layers as concentric circles, with nodes positioned on rings and inter-layer edges shown as radial connections.

from py3plex.visualization.multilayer import visualize_multilayer_network

# With inter-layer edges
fig = visualize_multilayer_network(
    network,
    visualization_type="radial_layers",
    base_radius=1.0,          # Radius of innermost layer
    radius_step=1.5,          # Distance between layers
    node_size=200,
    draw_inter_layer_edges=True,
    edge_alpha=0.5
)

# Intra-layer only
fig = visualize_multilayer_network(
    network,
    visualization_type="radial_layers",
    draw_inter_layer_edges=False
)

Best for:

• Temporal networks (layers as time steps)

• Hierarchical multilayer networks

• Visualizing node evolution across layers

• Networks with clear layer ordering

Parameters:

• base_radius: Radius of innermost ring

• radius_step: Distance between consecutive rings

• draw_inter_layer_edges: Show inter-layer connections

• node_size: Size of nodes

Interpretation:

• Each ring = one layer

• Same node appears at same angle on all rings

• Dashed lines = inter-layer connections

Ego-Centric Multilayer View

Focuses on a single node (the “ego”) and shows its neighborhood across different layers, highlighting the ego node’s position in each layer context.

from py3plex.visualization.multilayer import visualize_multilayer_network

# Basic ego view
fig = visualize_multilayer_network(
    network,
    visualization_type="ego_multilayer",
    ego='node_id',            # Node to focus on
    max_depth=1,              # Neighborhood depth (hops)
    layout="spring",
    node_size=100,
    ego_node_size=400         # Highlight ego node
)

# Specific layers only
fig = visualize_multilayer_network(
    network,
    visualization_type="ego_multilayer",
    ego='node_id',
    layers=['layer1', 'layer2'],  # Only these layers
    max_depth=2,              # 2-hop neighborhood
    with_labels=True
)

Best for:

• Analyzing individual node behavior

• Comparing local structure across layers

• Identifying layer-specific influential neighbors

• Understanding node role variations

Parameters:

• ego: Node ID to focus on

• layers: Specific layers to visualize (or None for all)

• max_depth: Neighborhood depth in hops

• layout: Layout algorithm per ego graph

• ego_node_size: Size of the highlighted ego node

Interpretation:

• Red node = the ego (focal node)

• Blue nodes = neighbors of the ego

• Each subplot = ego’s neighborhood in one layer

Flow and Sankey Diagrams

Py3plex provides two complementary visualizations for understanding inter-layer connectivity: flow/alluvial diagrams and Sankey diagrams. Both show how nodes and connections flow between layers, but with different visual approaches.

Flow/Alluvial Visualization

The flow visualization shows each layer as a horizontal band with nodes positioned along the x-axis. Inter-layer connections are drawn as flowing Bezier curves, with node activity encoded by color and size.

from py3plex.core import multinet

# Load network
network = multinet.multi_layer_network()
network.load_network("network.txt", input_type="multiedgelist")

# Flow visualization
ax = network.visualize_network(style='flow', show=True)

# Or use 'alluvial' (same as 'flow')
ax = network.visualize_network(style='alluvial', show=True)

Best for:

• Visualizing node-level connectivity across layers

• Understanding individual node trajectories

• Showing how specific nodes connect between layers

• Networks with up to 5-6 layers

Sankey Diagram for Inter-Layer Flows

The Sankey-style diagram provides an aggregate view of inter-layer connection strength. The visualization uses text and arrows where width represents the number of connections between layers. This is ideal for understanding overall flow patterns rather than individual node connections.

from py3plex.core import multinet

# Load network
network = multinet.multi_layer_network()
network.load_network("network.txt", input_type="multiedgelist")

# Sankey-style diagram showing inter-layer flow strength
ax = network.visualize_network(style='sankey', show=True)

You can also use the function directly:

from py3plex.visualization.sankey import draw_multilayer_sankey

# Get layers
labels, graphs, multilinks = network.get_layers()

# Create Sankey-style diagram
ax = draw_multilayer_sankey(
    graphs,
    multilinks,
    labels=labels,
    display=True
)

Best for:

• Analyzing aggregate inter-layer connection patterns

• Understanding flow strength between layers

• Identifying dominant layer connections

• Networks with 2-5 layers

• Summarizing inter-layer connectivity

Interpretation:

• Text shows layer-to-layer connections with counts

• Arrows indicate connection direction

• Arrow width proportional to connection strength

• Useful for identifying which layer pairs have strongest connections

Note:

This uses a simplified flow diagram approach rather than matplotlib’s traditional Sankey class, as it’s better suited for multilayer network inter-layer connections.

Example Workflows

Comparing Visualization Modes

Different modes reveal different aspects of the same network:

from py3plex.visualization.multilayer import visualize_multilayer_network
import matplotlib.pyplot as plt

# Load network
network = multinet.multi_layer_network()
network.load_network("network.txt", input_type="multiedgelist")

# Compare multiple views
modes = [
    "small_multiples",
    "edge_colored_projection",
    "supra_adjacency_heatmap",
    "radial_layers"
]

for mode in modes:
    fig = visualize_multilayer_network(network, visualization_type=mode)
    fig.savefig(f"network_{mode}.png", dpi=150, bbox_inches='tight')
    plt.close()

Analyzing Specific Nodes

Use ego-centric view to understand individual nodes:

# Find high-degree nodes
import networkx as nx

# Get aggregated network
agg_graph = nx.Graph()
for node in network.get_nodes():
    agg_graph.add_node(node[0])
for u, v in network.get_edges():
    agg_graph.add_edge(u[0], v[0])

# Get top nodes by degree
degrees = dict(agg_graph.degree())
top_nodes = sorted(degrees, key=degrees.get, reverse=True)[:5]

# Visualize each top node's ego network
for node in top_nodes:
    fig = visualize_multilayer_network(
        network,
        visualization_type="ego_multilayer",
        ego=node,
        max_depth=1
    )
    fig.savefig(f"ego_{node}.png", bbox_inches='tight')
    plt.close()

Choosing the Right Visualization

Use this guide to select the appropriate visualization mode:

For structural comparison:

• Use small_multiples to compare layer structures side-by-side

• Use edge_colored_projection to see aggregated structure with layer info

For mathematical analysis:

• Use supra_adjacency_heatmap for matrix-based analysis

• Useful for spectral methods and linear algebra operations

For temporal or hierarchical networks:

• Use radial_layers when layers have natural ordering

• Shows progression or hierarchy clearly

For local analysis:

• Use ego_multilayer to understand individual nodes

• Compare how a node’s role varies across layers

For presentations:

• Use edge_colored_projection for clean, simple overview

• Use small_multiples when detail matters

• Use radial_layers for visually striking displays

Next Steps

• Working with Networks - Network operations

• Community Detection Tutorial - Detect communities for coloring

• I/O and Serialization - Load data from various formats

• Performance and Scalability Best Practices - Optimize for large networks

For more examples, see the visualization examples in the GitHub repository.
